ELK分析產品銷售狀況

本專案係以2007-2009三年間某銷售資料，進一步以ELK做銷售分析，以圖表形式取得產品銷售情況。

---

---

---

環境設定安裝

• ELASTICSEARCH 離線安裝
  • 1.下載/安裝ELASTICSEARCH
    sudo wget https://artifacts.elastic.co/downloads/elasticsearch/elasticsearch-8.5.3-amd64.deb
    *如沒有安裝則使用：sudo dpkg -i elasticsearch-8.5.3-amd64.deb
  • 2.開啟Elasticsearch
    sudo systemctl daemon-reload
    sudo systemctl start elasticsearch
  • 3.確認是否可以進入Elasticsearch
    網頁輸入: https://10.167.223.84:9200/
  • 4.重置密碼Elasticsearch(設定密碼：(elastic)
    sudo /usr/share/elasticsearch/bin/elasticsearch-reset-password -i -u elastic
  • 5.重置密碼kibana(設定密碼：elastic])
    sudo /usr/share/elasticsearch/bin/elasticsearch-reset-password -i -u kibana_system
• KIBANA 離線安裝
  • 1.下載/安裝KIBANA
    sudo wget https://artifacts.elastic.co/downloads/kibana/kibana-8.5.3-amd64.deb
    dpkg -i kibana-8.5.3-amd64.deb
    *如沒有安裝則使用：sudo dpkg -i kibana-8.5.3-amd64.deb
  • 2.重新啟動
    systemctl start kibana
  • 3.確認是否可以進入kibana
    網頁輸入: http://10.167.223.84:5601/
  • 4.取得 Token 貼上kibana網頁
    sudo /usr/share/elasticsearch/bin/elasticsearch-create-enrollment-token -s kibana
  • 5.取得 驗證碼 貼上kibana網頁.
    sudo /usr/share/kibana/bin/kibana-verification-code
    *TOKEN 與驗證碼修改內容(如無法連線 最底下可以修改)
    sudo vi /etc/kibana/kibana.yml

• LOGSTASH 離線安裝
  • 1.下載/安裝LOGSTASH
    sudo wget https://artifacts.elastic.co/downloads/logstash/logstash-8.5.3-amd64.deb
    *如沒有安裝則使用：sudo dpkg -i logstash-8.5.3-amd64.deb
  • 2.重啟
    sudo systemctl restart elasticsearch

---

KIBANA儀表板圖表製作

• 匯入銷售資料/圖表製作：
  • 1.進入KIBANA的Data Visualizer匯入資料範例資料檔案下載
  • 2.進入Discover，擴大搜尋資料範圍改成Last150 years即可看到匯入的全部資料
  • 3.創建儀表板，拉入原始資料欄位創建圖表

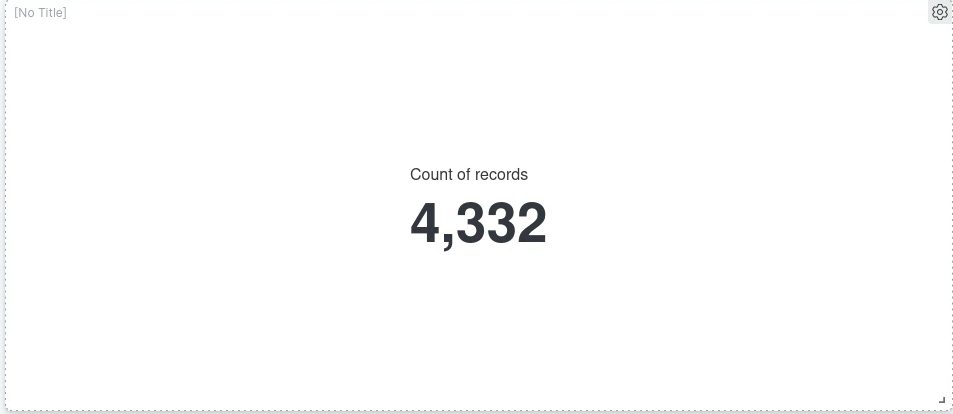

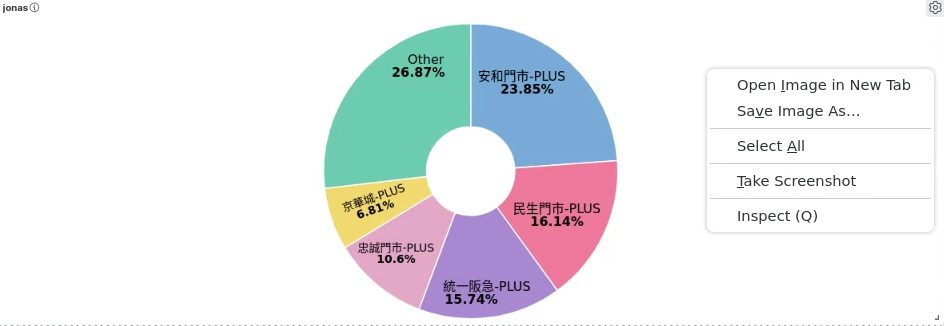

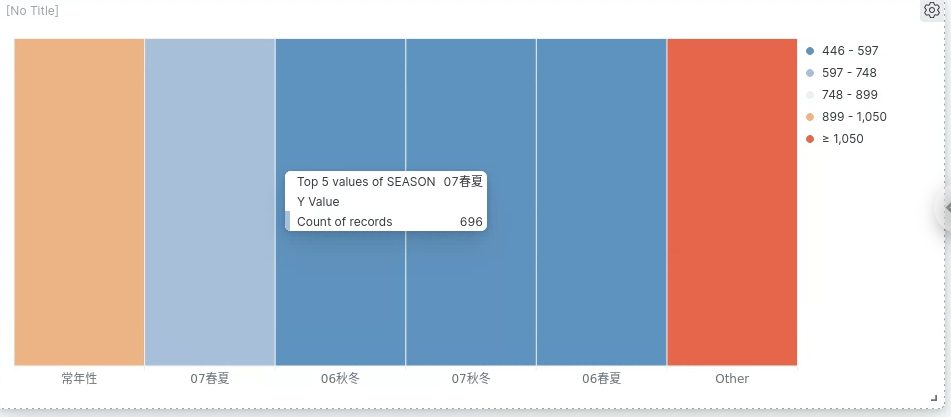

• 儀錶板畫面呈現

---

Logstash設定日期與經緯度資料型態

• output至Elasticsearch：
  • 1.建立conf設定檔(可參考網頁最底下)
  • 2.使用指令啟動：/usr/share/logstash/bin/logstash –f /etc/logstash/環境變數.conf

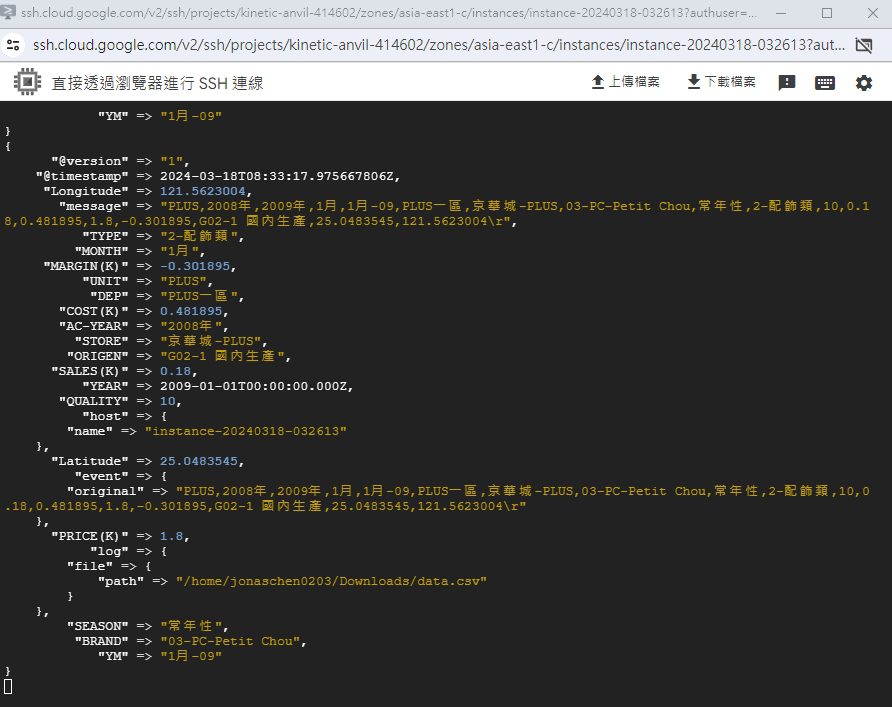

• 儀錶板畫面呈現

conf設定檔內容(僅供參考，應依環境變數設定)：
#sudo /usr/share/logstash/bin/logstash -f /etc/logstash/manual/hwhw.conf

input {
  file {
    path => "/home/jonas/Downloads/*data.csv"
    start_position => "beginning"
    sincedb_path => "/dev/null"
    # 設置檔案的編碼格式
    codec => plain {
      charset => "UTF-8"
    }
  }
}

filter {
  # 解析 CSV 檔案
  csv {
    separator => ","
    columns => ["UNIT" ,"AC-YEAR" ,"YEAR" ,"MONTH" , "YM","DEP","STORE","BRAND","SEASON","TYPE","QUALITY","SALES(K)","COST(K)","PRICE(K)","MARGIN(K)","ORIGEN", "Latitude", "Longitude"]
    # 如果第一行是標頭，你可以設置為 true
    # skip_header => true
  }

  # 設定日期欄位的資料型態
  date {
    match => ["YEAR", "YYYY年"]
    target => "YEAR"
  }
  # 將經緯度欄位轉換為浮點數型態
  mutate {
    convert => { "QUALITY" => "integer" }
    convert => { "SALES(K)" => "float" }
    convert => { "COST(K)" => "float" }
    convert => { "PRICE(K)" => "float" }
    convert => { "MARGIN(K)" => "float" }
    convert => { "Latitude" => "float" }
    convert => { "Longitude" => "float" }
  }

}

output {
  elasticsearch {
    hosts => ["https://localhost:9200"]
    index => "hwhw"
    ssl => true
    ssl_certificate_verification => false
    user => elastic
    password=>"elastic"
  }
  stdout { codec => rubydebug }
}
